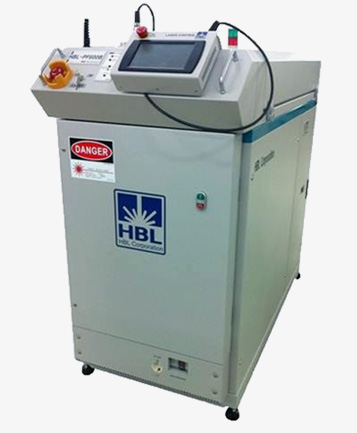

고출력 Pulsed YAG Laser / LP
Wavelength : 1064nm
Average power : 50~600W
Max pulse energy : 40 ~ 100J
모델명 HBL PF-50B HBL PF-100B HBL PF-180B HBL PF-300B HBL PF-400B HBL PF-500B HBL PF-600B
발생모드 Pulsed Pulsed Pulsed Pulsed Pulsed Pulsed Pulsed
발생파장 1.064㎛ 1.064㎛ 1.064㎛ 1.064㎛ 1.064㎛ 1.064㎛ 1.064㎛
레이저에너지 25J Max 35J Max 40J Max 60J Max 70J Max 100J Max 120J Max
평균출력 50W 100W 180W 300W 400W 500W 600W
첨두출력 8㎾ 8㎾ 8㎾ 10㎾ 10㎾ 12㎾ 15㎾
주파수 1 ~ 100㎐ 1 ~ 100㎐ 1 ~ 100㎐ 1 ~ 200㎐ 1 ~ 300㎐ 1 ~ 300㎐ 1 ~ 300㎐
펄스폭 0.1 ~ 10.0㎳ 0.1 ~ 10.0㎳ 0.1 ~ 10.0㎳ 0.1 ~ 10.0㎳ 0.1 ~ 20.0㎳ 0.1 ~ 20.0㎳ 0.1 ~ 20.0㎳
광섬유 GI/SI Type 400㎛~600㎛ GI/SI Type 400㎛~800㎛ GI/SI Type 400㎛~600㎛ GI/SI Type 400㎛~800㎛ GI/SI Type 400㎛~600㎛ GI/SI Type 400㎛~800㎛ GI/SI Type 400㎛~800㎛
냉각장치 8 LPM 2bar 18℃ 15 LPM 2bar 18℃ 15 LPM 2bar 18℃ 15 LPM 2bar 18℃ 20 LPM 2bar 18℃ 20 LPM 2bar 18℃ 25 LPM 2bar 18℃
전원장치 3￠(380V or 220V)±5%
(60Hz or 50Hz), 8kVA		 3￠(380V or 220V)±5%
(60Hz or 50Hz), 15kVA		 3￠(380V or 220V)±5%
(60Hz or 50Hz), 15kVA		 3￠(380V or 220V)±5%
(60Hz or 50Hz), 15kVA		 3￠(380V or 220V)±5%
(60Hz or 50Hz), 25kVA		 3￠(380V or 220V)±5%
(60Hz or 50Hz), 28kVA		 3￠(380V or 220V)±5%
(60Hz or 50Hz), 30kVA
사이즈 640 ×950×1330 640 ×1100×1770 640 ×1100×1770 640 ×1200×1770 640 ×1200×1770 640 ×1200×1770 640 ×1200×1770
중량 250Kg 300Kg 300Kg 300Kg 400Kg 450Kg 450Kg
